Welding, Cleaning and Cutting Three Use
Small size and light weight, easy to learn, only a few hours for beginners to get started. Realize the three functions of cleaning,
welding and cutting at the same time uses the power of your laser for pre and post weld cleaning.
Intelligent Operating System
Adopt touch screen design, easy and quick to click and set, with real-time fault reading, feedback and alarm functions.
There is a process parameter library, which can realize the rapid storage and recall of cleaning process parameters.
Remote controller at the welder side for multi-parameters adjustment. Save time and effort, easy to operate.
Au3tech Laser Welding & Cleaning Head
Dual protective windows design,Protect the focusing lens from dust contamination
Various welding methods

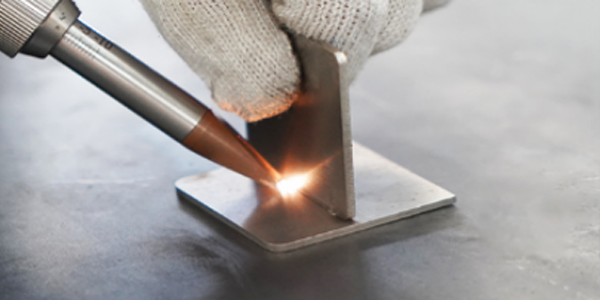

The welding seam is smooth and beautiful, and the welding quality is good. It can realize spot welding, continuous spot welding, fish scale welding, full welding, and continuous full welding.
기술적인 매개변수
Machine Model | LCW Series Laser Welding & Cleaning System |
Laser power | 1000W 1500W 2000W (optional) |
laser wave length | 1064nm |
Fiber length | Standard10M / Maximum 15M |
W0 | 0~120 mm/s |
Cooling chiller | Industrial water chiller |
Working environment temperature range | 15~35 ℃ |
Welding thickness recommendations | 0.5-3mm |
working voltage | 220 V |
Cleaning parameters | cleaning width : 0-80mm |
Focus height : 600mm |
응용 산업

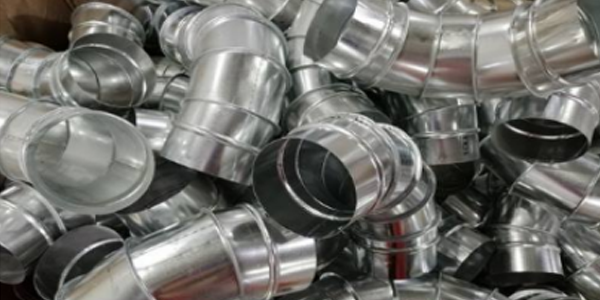

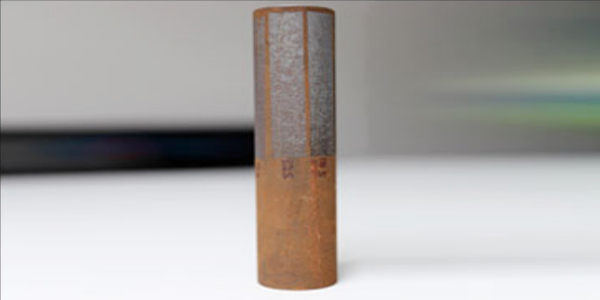

Laser cleaning and welding machine can remove the object surface resin, the paint, the oil pollution, stains, dirt, rust, and oxide coatings.Can weld iron, aluminum alloy, stainless steel and other materials
